Khoom Desc.

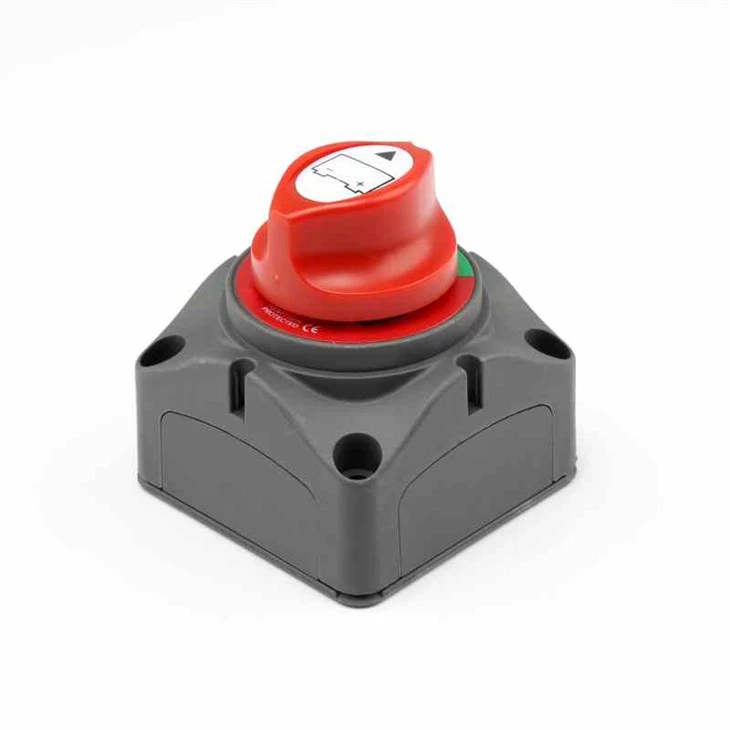

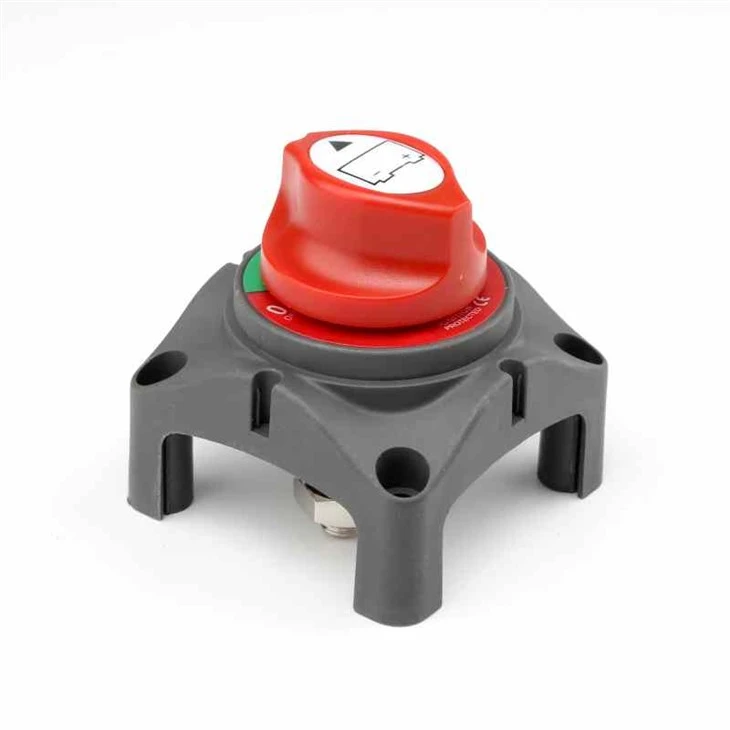

Lub 48V Waterproof Heavy Duty Roj Teeb Hloov yog qhov ruaj khov, muaj ntau yam, thiab muaj kev nyab xeeb-paub tiv thaiv tsim rau RVs thiab kev siv dej hiav txwv. Nws cov ntawv sau meej meej, kev tiv thaiv hluav taws xob, thiab kev tsim kho kom ruaj khov ua rau nws muaj kev ntseeg siab rau kev tswj hwm kev faib hluav taws xob thiab ua kom muaj kev nyab xeeb ntawm cov tshuab hluav taws xob ntawm lub nkoj.
Nta ntawmHeavy Duty Battery Switch
1. Khoom siv thiab kev tsim kho:RV Battery Disconnect Switch yog tsim los nrog lub tsev nyob ruaj khov ua los ntawm ABS (Acrylonitrile Butadiene Styrene) yas, uas paub txog nws qhov tawv thiab tsis kam rau ib puag ncig yam xws li ya raws thiab UV hluav taws xob. Lub vaj tsev ruaj khov no ua kom lub qhov hloov pauv tuaj yeem tiv taus qhov nruj ntawm qhov chaw sab nraum zoov thiab dej hiav txwv.

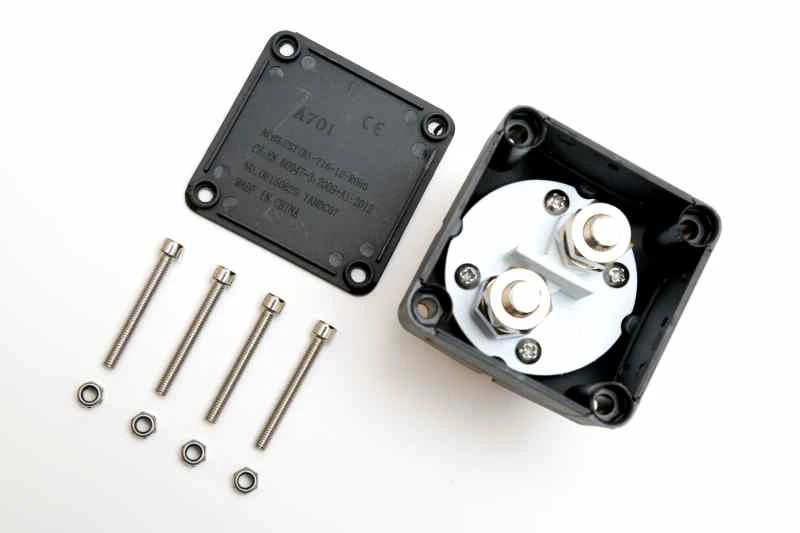

2. Bolts thiab Studs:Qhov kev hloov no muaj plaub txheej ntawm bolts thiab tinned tooj liab studs, nrog rau ob lub studs ntsuas 3/8 "(10mm) inch. Tinned tooj liab yog siv rau cov studs vim tias nws muaj cov khoom siv hluav taws xob zoo heev thiab kev tiv thaiv corrosion, ua kom muaj zog hloov pauv thiab ntev- kev ua haujlwm ntev.
3. Ignition Protection:Lub tshuab hluav taws xob tiv thaiv hluav taws xob, uas txhais tau hais tias nws yog tsim los tiv thaiv cov hluav taws xob lossis hluav taws xob arcs uas tuaj yeem ua rau hluav taws kub hnyiab tau los yog cov khoom siv hauv qhov chaw muaj kev phom sij. Qhov kev nyab xeeb no yog qhov tseem ceeb rau RVs thiab kev siv dej hiav txwv uas muaj roj lossis lwm yam khoom siv hluav taws xob tuaj yeem tshwm sim.
4. Cov Cim Xim Xim:RV Roj Teeb Disconnect Hloov yog nruab nrog cov ntawv cim xim kom yooj yim kom paub qhov txawv ntawm nws txoj haujlwm sib txawv, txawm tias nyob rau hauv qhov chaw qis lossis hmo ntuj. Cov ntawv sau npe no pab cov neeg siv ceev nrooj txheeb xyuas qhov hloov pauv qhov xwm txheej.
Khoom Parameter
| Khoom npe: | 48V Waterproof Heavy Duty Roj Teeb Hloov | Kev ua haujlwm: | On/off 1-2-Ob leeg-Off |
|
Rated voltage: |
mus txog 48V DC | Rated Tam sim no: | 200Amps DC zog |
| Intermittent Rating: | 455 dc zog | Cranking Rating 30 Sec: | 1250A |
| Dielectric zog: | 1500VAC / 1 min | Hluav taws xob lub neej: | 10000 Sijhawm |
| Khoom siv: | Yas + tooj liab | Net Nyhav: | 560g |

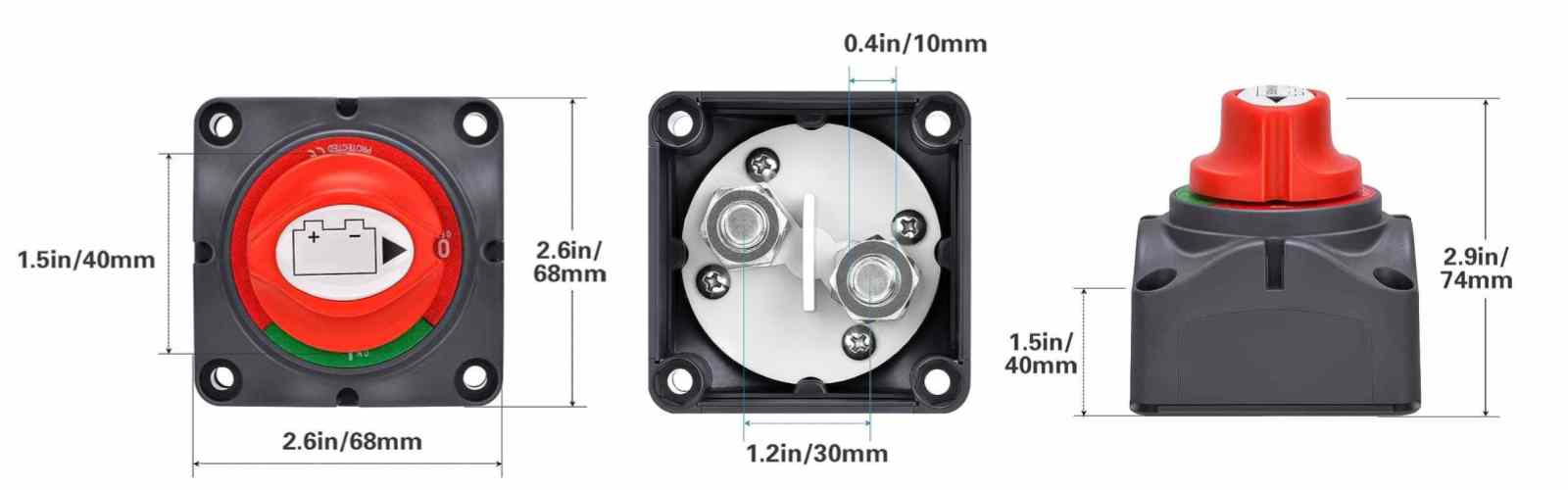

Khoom Dimension
Kab kos duab

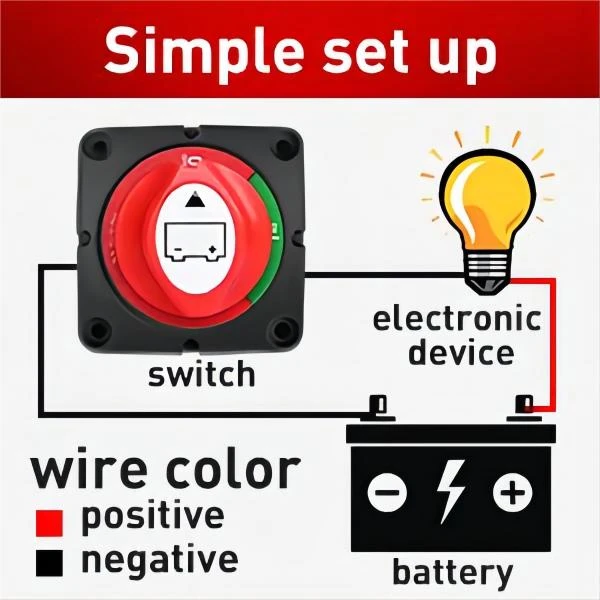

1. Kev teeb tsa yooj yim
2. dual roj teeb teeb
3. ib leeg on-off hloov

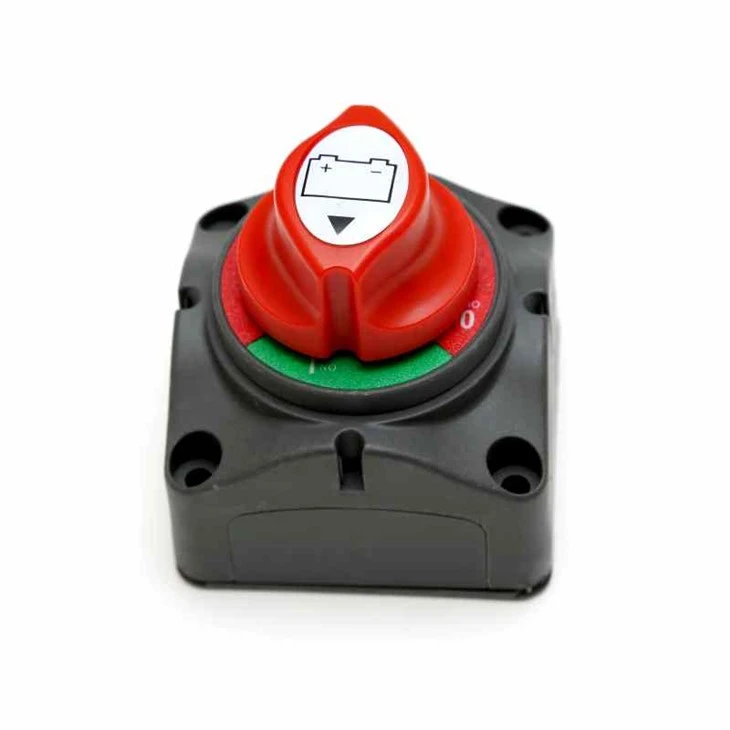

On-off hloov
Lub 48V Waterproof Heavy Duty Battery Switch muaj ib qho yooj yim On / Off muaj nuj nqi, nrog cov xim ntshiab los qhia txog cov xwm txheej. Thaum hloov ON, nws tso cai rau lub hwj chim (qhia los ntawm daim ntawv qhia ntsuab) kom ntws los ntawm lub kaw lus kaw, ua rau cov hluav taws xob txuas nrog thiab cov khoom siv. Thaum switched OFF, nws txiav tawm lub hwj chim (qhia los ntawm daim ntawv lo liab), zoo disconnecting lub roj teeb los ntawm Circuit Court tiv thaiv lub hwj chim ntws los yog hluav taws xob ua hauj lwm.
Appilcation
RV Battery Disconnect Switch, nrog rau nws cov yam ntxwv tshwj xeeb thiab muaj peev xwm, pom ntau daim ntawv thov tseem ceeb hauv cov ntsiab lus ntawm kev ua si tsheb (RVs) thiab thaj chaw marine. Nov yog qee qhov kev siv ntau:
1. Roj teeb cais:Ib qho ntawm cov kev siv tseem ceeb ntawm qhov kev hloov no yog cais cov RV lossis cov roj teeb hauv hiav txwv. Thaum lub hloov pauv nyob rau hauv OFF txoj hauj lwm (daim ntawv liab), nws disconnects lub roj teeb ntawm lub tshuab hluav taws xob, tiv thaiv txhua lub zog ntws thaum lub tsheb lossis lub nkoj tsis siv rau lub sijhawm ntev. Qhov no yuav pab xyuas kom meej tias lub roj teeb tseem them thiab npaj siv.
2. Kev nyab xeeb thiab kev kaw thaum muaj xwm ceev:Lub tshuab hluav taws xob ua haujlwm raws li kev ntsuas kev nyab xeeb thiab kev kaw thaum muaj xwm txheej ceev. Thaum muaj teeb meem hluav taws xob lossis xwm txheej ceev, tig lub hloov mus rau OFF txoj haujlwm sai tuaj yeem txiav lub zog rau txhua lub tshuab txuas, txo qhov kev pheej hmoo ntawm hluav taws xob hluav taws xob lossis kev phom sij.
3. Kev tswj fais fab:RVs thiab cov nkoj hauv hiav txwv feem ntau muaj ntau lub tshuab hluav taws xob thiab khoom siv, nrog rau cov teeb pom kev zoo, cov khoom siv, cov khoom siv navigation, thiab lwm yam. Qhov hloov pauv tso cai rau cov neeg siv xaiv lub zog ntawm cov tshuab no los ntawm kev hloov pauv mus rau ON txoj haujlwm (daim ntawv ntsuab) thaum xav tau thiab tig nws OFF thaum tsis siv. Qhov no pab tswj kev siv hluav taws xob zoo.
4. Roj teeb lub txhab nyiaj Management:Hauv cov ntawv thov nrog ntau lub tsev txhab nyiaj roj teeb, xws li kev pib sib cais thiab cov roj teeb hauv tsev ntawm cov nkoj lossis RVs, qhov hloov pauv tuaj yeem siv los tswj thiab hloov ntawm cov tsev txhab nyiaj no. Qhov no ua kom ntseeg tau tias txhua lub txhab nyiaj roj teeb siv rau nws lub hom phiaj, ua kom lub zog faib hluav taws xob zoo.
5. Tiv thaiv hluav taws xob:Los ntawm kev xauv ntau lub keyboards ua ke, cov neeg siv tuaj yeem tiv thaiv hluav taws xob kom zoo. Qhov no yog ib qho tseem ceeb kom ntseeg tau tias lub hwj chim tsis yog los ntawm cov roj teeb inadvertently thaum lub tsheb lossis lub nkoj tsis siv.
Installation Case
Lus Cim: Qhov ntsuas tam sim no ntawm qhov hloov pauv yog 275A, thov tsis txhob tshaj tus nqi no ntev! Txwv tsis pub tus tes hloov yuav hlawv. Thov siv qhov hloov nruj me ntsis raws li daim duab thaiv! Kev xaim tsis raug yuav tsis muaj qhov cuam tshuam ntawm kev txiav lub zog.
Ntau txoj kev xaiv
txais tos rau peb lub Hoobkas
Founded hauv 2011, Dongguan Senreach Electronics Co., Ltd. Peb muaj 20 xyoo dhau los ntawm kev tsim fuses, fuse tuav, Circuit Court breakers, thermal protectors, ntc sensors, thiab lwm yam.
Peb muaj ntau yam kev tsim khoom siab heev thiab cov khoom siv kuaj. Nrog rau kev siv cov kev tswj xyuas zoo, peb ua kom paub tseeb tias txhua yam ntawm peb cov khoom muaj kev nyab xeeb thiab ruaj khov. Senreach tau dhau ISO9001: 2000 kev tswj hwm qhov system ntawv pov thawj, thiab nws cov khoom ua tau raws li cov qauv thoob ntiaj teb suav nrog UL, UR, CSA, BSI, CUL, VDE, TUV, PSE, CE, CCC, ROHS ntawv pov thawj thiab lwm yam.
Peb tshwj xeeb hauv kev tsim, tsim thiab muag tshaj tam sim no, dhau qhov kub thiab dhau voltage Circuit Court tiv thaiv ntawm ntau yam khoom, hom thiab specifications. Cov khoom siv dav siv hauv cov khoom siv hluav taws xob, tsheb, nkoj, kev sib txuas lus, khoom siv hluav taws xob, lub zog tshiab, photovoltaic thiab lwm yam.
