Khoom Desc.

Lub Selector Roj Teeb Hloov yog tsim los hloov cov txhab nyiaj roj teeb hauv cov ntawv thov uas xav tau cov khoom siv hluav taws xob siab, kev ntseeg siab, thiab tsis tshua muaj hluav taws xob. Cov keyboards no hloov cov roj teeb cais rau tag nrho cov loads los yog muab cov roj teeb rau tag nrho cov loads thiab feature tinned tooj liab studs rau siab tshaj plaws conductivity thiab corrosion kuj. Bolts tuaj yeem txais 3/8 "(M10) lub nplhaib terminals thiab muaj 7/8" ntsia liaj qhov rooj ntev (22 hli) uas tuaj yeem txais ntau lub cable terminals. Ib-thooj davhlau ya nyob twg stud tsim yeej tsis loosens thaum lub sij hawm. Integrated stainless hlau flange txiv ntoo kom muaj kev ruaj ntseg thiab txhim khu kev qha kev sib txuas.

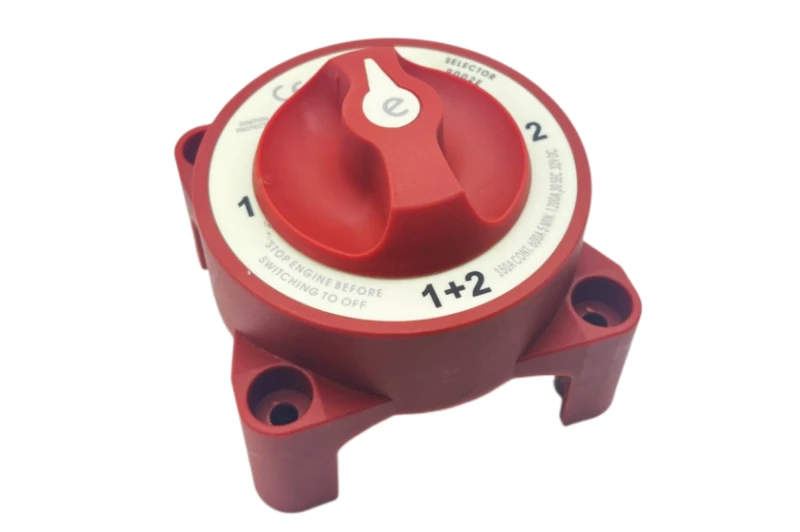

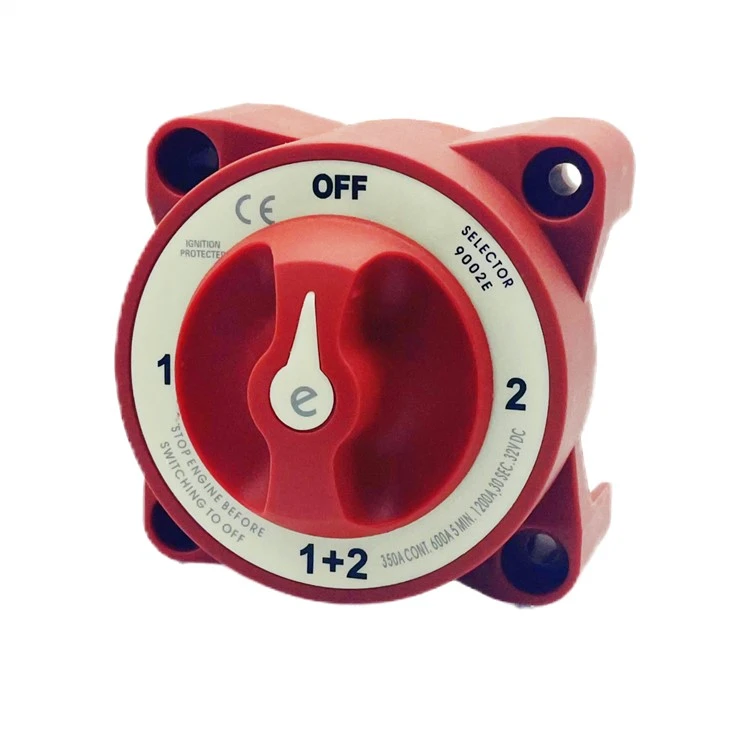

Battery Switch Selector 4 Position 350A 4

Cov yam ntxwv ntawm Roj Teeb Hloov

1. Ignition tiv thaiv:Nrog kev tiv thaiv hluav taws xob muaj nuj nqi, nws muaj kev nyab xeeb rau kev teeb tsa hauv cov nkoj siv roj av.

2. Xaiv 4 Txoj Haujlwm:Hloov cov tuam txhab roj teeb cais rau txhua qhov kev thauj khoom lossis sib txuas cov txhab nyiaj roj teeb rau txhua qhov kev thauj khoom.

3. Zoo Zoo:Cov khoom zoo ABS thiab cov khoom siv tooj liab tuaj yeem ua kom lub zog thiab ruaj khov ntawm cov khoom

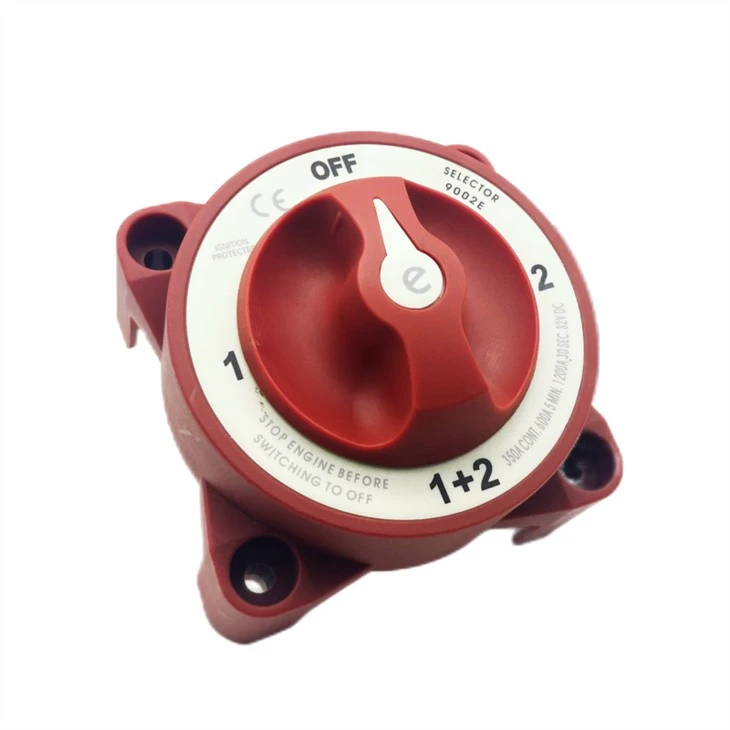

Battery Switch Selector 4 Position 350A 3

4. Zoo heev Tsim:Nrog me me thiab zoo nkauj tsos, lub roj teeb keyboards yuav siv tau raws li lub ntsiab fais fab hloov rau motorhomes, yachts thiab siv machinery. Case tsim tso cai rau saum npoo los yog rear vaj huam sib luag mounting.

5. Waterproof:IP66 waterproof thiab nws tuaj yeem txais 2 4/0 AWG (95mm²) roj teeb cables uas ua rau nws yooj yim rau kev txuas.

Khoom Parameter

Khoom npe:	Roj teeb Hloov Xaiv 4 Txoj Haujlwm 350A	Kev ua haujlwm:	Off-ON
Rated voltage:	32V 48V DC fais fab mov	Rated Tam sim no:	350Amps DC lub zog
Hloov hom:	Xaiv 4 Txoj Haujlwm	Khoom siv:	Tinned Copper
Terminal Stud Loj:	3/8" - 16 (M10)	Mounting Qhov:	Txais 1/4 "(M6) Ntsia Hlau
Intermittent Rating:	600A (5 feeb)	Cranking Rating 30 Sec:	30 Sec 1200 A
Qhov hnyav:	470G	Dielectric zog:	1500VAC / 1 min
Yam khoom No.:	9001E	Daim ntawv pov thawj:	CE cim, UL teev

Khoom Dimension

Battery Switch Selector 4 Position 350A 53

Kev qhia txog kev txhim kho

battery switch for marine yacht 1

Kauj ruam 1: Hloov mus rau 1

Hloov ib lub roj teeb rau ib pawg neeg thauj khoom

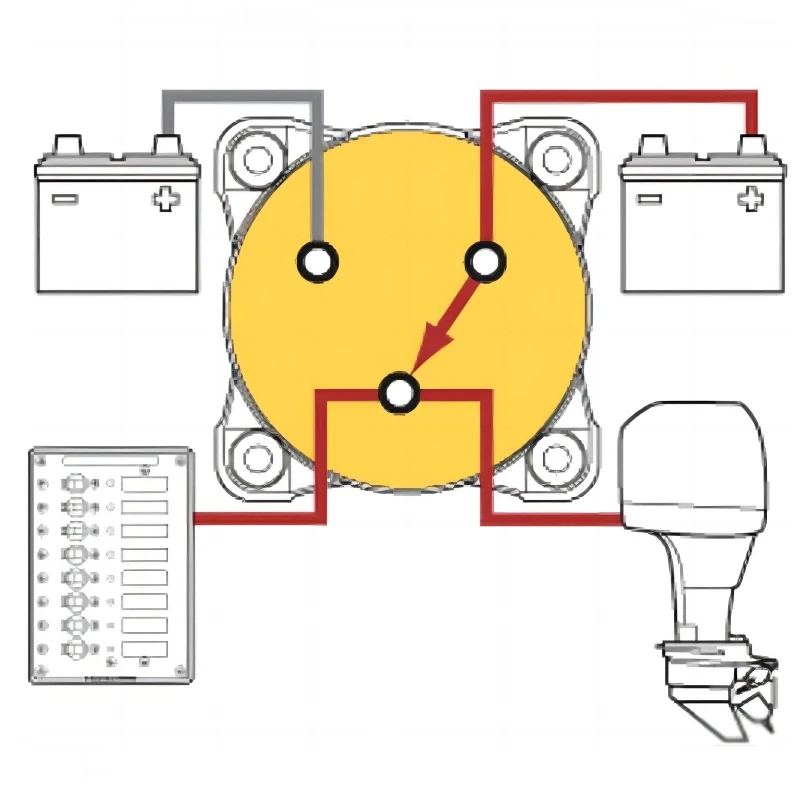

battery switch for marine yacht 21

Kauj ruam 2: Hloov mus rau 2

Hloov ib lub roj teeb rau ib pawg neeg thauj khoom

Kauj ruam 3: Hloov teeb rau 1 ntxiv 2

Muab cov roj teeb tso nyiaj rau txhua qhov kev thauj khoom

Yuav Ua Li Cas Mount

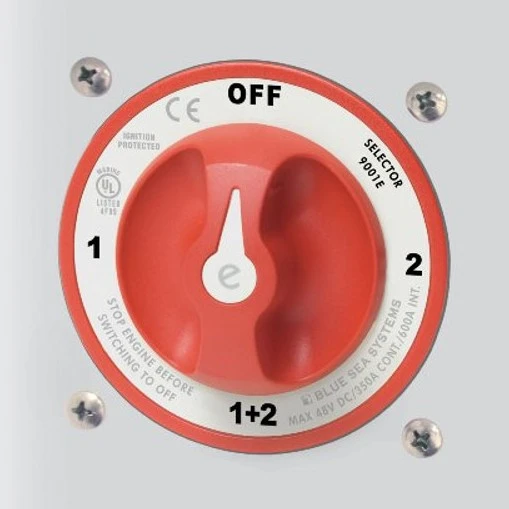

350A battery switch 4 position selector 1

Tsheb Mounting

Battery Switch Selector 4 Position 350A 11

Tsheb Mounting Diagram

Nto Mounting

Battery Switch Selector 4 Position 350A 22

Nto Mounting Diagram

Appilcation

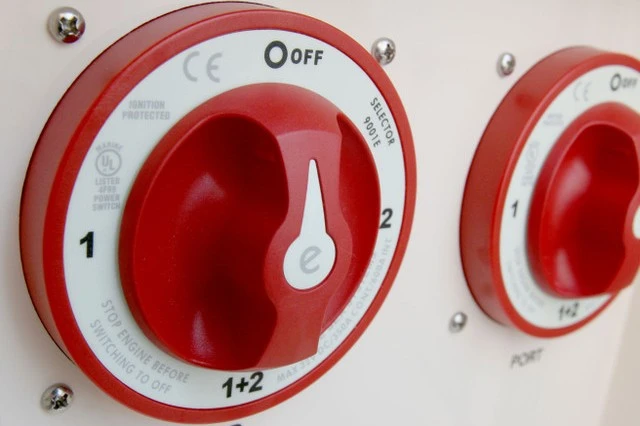

Battery Switch Selector 4 Position 350A 111

Kev thov dav

Lub roj teeb hloov tau dav siv rau tsheb, marine, nkoj, RV, camper, tsheb thauj mus los, tsheb, ATV, UTV, roj teeb lub tsev txhab nyiaj thiab lwm yam khoom siv.

Tam sim no, hom kev hloov pauv kev sib xyaw ua ke no yog siv nyob rau hauv ntau lub nroog ntug dej hiav txwv thoob ntiaj teb, thiab kev teeb tsa yooj yim.

12V 140 AMP Smart Dual Battery Isolator for Cars 241

Khoom Installation

marine car battery switch isolator switch 1
