Khoom Desc.

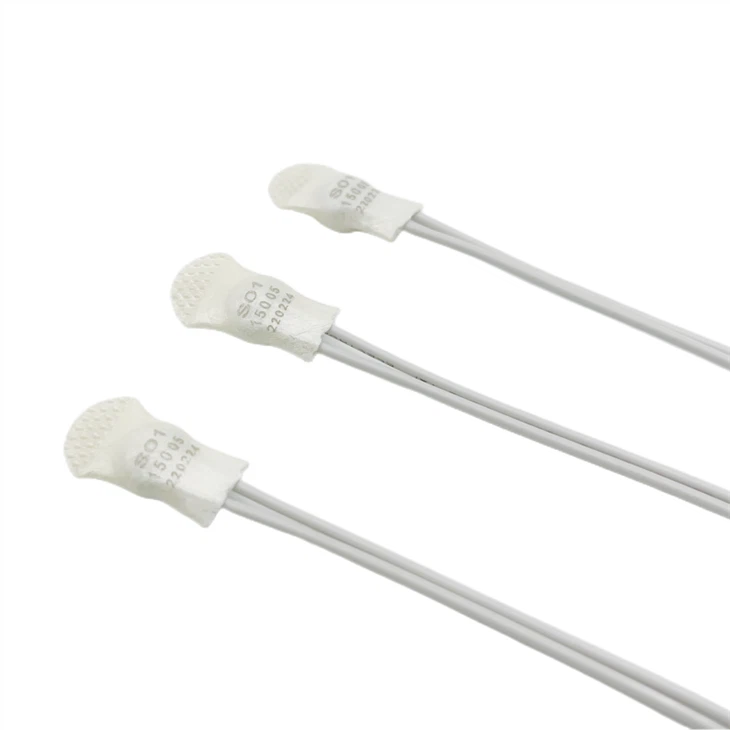

S01 thermostat yog lub thermal tiv thaiv. Nws nta ib tug compact tsim nrog silver-plated tooj liab plhaub thiab siv ib tug bimetallic tivthaiv. S01 khawm hom yog snap nkaus thiab bimetallic thermostat. Bimetal tawm mus los yog ceev ceev kom qhib lossis kaw qhov hluav taws xob thaum kub nce mus txog tus nqi teev tseg.
Qhov zoo ntawm S01 Thermal Protector
1. Ntiaj teb no Supply Chain Integration: S01 thermostat leverages thoob ntiaj teb cov saw saw hlau. Cov khoom siv bimetallic yog tsim los ntawm cov khoom siv los ntawm EMS, lub ntiaj teb cov chaw tsim khoom loj tshaj plaws bimetallic nyob hauv Tebchaws Meskas. Lub plhaub ntawm lub ntsuas cua siv lub tshuab stamping thiab tsim los ntawm tus neeg muag khoom German.
2. Bimetallic Component thiab Spring Material: Cov khoom siv bimetallic, lub luag haujlwm rau kev ntsuas kub, siv cov ntaub ntawv los ntawm NGK hauv Nyiv.
Kev ua thiab kev tsim cov khoom siv bimetallic yog ua los ntawm Japanese stamping qhov chaw muab khoom.
3. Silver Plating: Ob lub plhaub thiab lub caij nplooj ntoos hlav ntawm lub ntsuas sov tau txais nyiaj plating. Cov txheej txheem nyiaj plating no txo qis kev tiv thaiv kev tiv thaiv.
4. Automated Production and Testing: Lub bimetallic tivthaiv, yog ib feem ntawm lub ntsuas cua sov, yog tsim thiab sim siv tag nrho automated molding khoom thiab ntsuas kub ntsuas qhov cub. Cov txheej txheem tsim khoom siv hluav taws xob no ua kom zoo sib xws thiab kev ua haujlwm ruaj khov ntawm cov ntsuas kub.
Khoom Parameter
| Khoom npe: | S01 Thermal Protection Hloov | Maximum hluav taws xob parameter: |
250VAC 3A / 127VAC 6A, 12VDC 6A / 24VDC 5A. |
| Rwb thaiv tsev Voltage: | AC1500V rau 1m lossis AC1800V rau 1sec | Tolerance ntawm Kev Ua Haujlwm Kub: | ± 5 degree |
| Tiv tauj Resistance: | qis dua 50mΩ |
Thaum tshav kub kub Endurance Test:
|
150 degree rau 96 teev
|
|
Lub neej voj voog:
|
2000 zaug
|
Hom kev sib txuas:
|
Hlau daim ntawv cog lus
|
|
Plhaub:
|
Nyiaj plated tooj liab.
|
Khoom siv tes tsho:
|
Tebchaws Asmeskas Dupont Polyester zaj duab xis nrog NOMEX
|
Cov Khoom Paub meej
Cov Khoom Siv Khoom
| Tsis muaj. | Lub npe | Tsis muaj. | Lub npe |
| ① |
Case |
⑦ |
Tiv tauj chaw nres tsheb
|
| ② |
Nplhaib
|
⑧ |
Rwb thaiv tsev shrink cap
|
| ③ |
Npog phaj
|
⑨ |
Hlau hlau
|
| ④ |
Epoxy cob
|
⑩ |
Bimetal-disc
|
| ⑤ |
xim
|
⑪ |
Caij nplooj ntoos hlav
|
| ⑥ |
Rwb thaiv tsev ntawv
|
⑫ |
Movable tiv tauj
|
Txoj Cai Tiv Thaiv Kub Kub
Wide Appilcation
1. Cov Khoom Siv Hauv Tsev:Nws tuaj yeem siv rau hauv tub yees, cua txias, qhov cub, microwaves, lub tshuab kas fes, thiab lwm yam khoom siv hauv tsev kom tsis txhob muaj qhov kub thiab txias ntau dhau uas tuaj yeem ua rau muaj teeb meem tsis zoo lossis hluav taws kub.
2. Cua sov Systems:S01 thermal tiv thaiv tuaj yeem ua haujlwm rau hauv cov cua sov xws li lub tshuab rhaub dej, boilers, thiab qhov chaw tso cua sov kom ntseeg tau tias muaj kev nyab xeeb thiab tiv thaiv kom tsis txhob muaj cua sov.
3. Teeb pom kev zoo:S01 thermal tiv thaiv tuaj yeem siv rau hauv cov khoom siv teeb pom kev zoo, teeb pom kev zoo, thiab LED teeb kom tsis txhob muaj cua sov thiab ua kom muaj kev nyab xeeb thiab ua haujlwm tau zoo.
4. Cov cuab yeej fais fab thiab cov cuab yeej muaj:Nws tuaj yeem muab tso rau hauv cov cuab yeej hluav taws xob, cov tshuab ua haujlwm, thiab cov khoom siv los tiv thaiv kev puas tsuaj los ntawm cov cua sov ntau dhau thaum ua haujlwm.
5. Automotive Kev Lag Luam:S01 thermal protector tuaj yeem siv rau hauv tsheb los tiv thaiv cov khoom xws li lub tshuab hluav taws xob, lub tshuab cua txias, roj teeb, thiab lwm yam hluav taws xob los ntawm kev kub dhau.
6. Tsav thiab Compressors:Nws tuaj yeem tiv thaiv lub cev muaj zog thiab compressors hauv ntau yam khoom siv, suav nrog cov kiv cua, twj, compressors, thiab HVAC systems, los ntawm kev saib xyuas thiab tswj lawv qhov kub thiab txias.
Lub Hoobkas ncig saib
Dongguan Senreach Electronic Co., Ltd. tau tsim nyob rau hauv 2000. Peb lub Hoobkas npog thaj tsam ntawm 4000 square metres nrog lub peev xwm ntau lawm txhua hli ntawm 50 lab daim. Peb tau cog lus tias yuav dhau los ua ib qho kev tiv thaiv hluav taws xob tiv thaiv hluav taws xob thiab cov chaw muag khoom.
Peb tau tshwj xeeb hauv kev tiv thaiv tam sim no, kev tiv thaiv kub, dhau voltage tiv thaiv tsim, kev tsim kho, ntau lawm thiab muag khoom. Cov khoom siv dav siv hauv cov khoom siv hluav taws xob, tsheb, nkoj, kev sib txuas lus, khoom siv hluav taws xob, cov cuab yeej hluav taws xob, lub zog tshiab thiab lwm yam.
Nrog rau ntau yam kev tsim khoom thiab kev sim cov cuab yeej, peb tau txais kev tswj xyuas zoo tshaj plaws los xyuas kom meej tias txhua qhov ntawm peb cov khoom muaj kev nyab xeeb thiab ruaj khov. Peb cov haujlwm yog ISO9001:2000- ntawv pov thawj thiab cov khoom ua tau raws li cov qauv thoob ntiaj teb.
khoom siv
khoom siv
Kev cob qhia ntau lawm
khoom siv
Kev tsim fuse
Kev cob qhia ntau lawm
Cov ntaub ntawv khaws cia
khoom siv
Vim Li Cas Xaiv Peb
Nqe Advantage
Peb muaj ib tug ua tiav suuply saw los ntawm raw cov ntaub ntawv mus rau zaum kawg packing uas enables peb tswj tus nqi ntau lawm ntawm txhua kauj ruam.
Guaranteed Zoo
Txhua daim ntawm cov khoom dhau los ntawm kev soj ntsuam tag nrho los ntawm ob qho tib si pib kuaj cov cuab yeej thiab peb pab pawg QA.
Tshuag lag luam wholesale
Peb muaj qhib Tshuag rau qee cov khoom siv thoob ntiaj teb. Lub sij hawm xa tuaj tsuas yog li 1 lub lis piam xwb.
Ib-Stop Service
Peb muaj R&D, QA, kev muag khoom thiab pab pawg muag khoom tom qab muab kev pabcuam rau koj nrog rau kev xaiv pom zoo, kev txhawb nqa kev pabcuam, kev tiv thaiv tomqab muag.
Exhibition
Hauv kaum xyoo dhau los, peb tau koom nrog ntau qhov kev nthuav qhia hauv tsev thiab txawv teb chaws txog cov khoom siv hluav taws xob. Ntau thiab ntau tus neeg ua lag luam txawv teb chaws tau paub txog peb lub Hoobkas, kom lawv tuaj yeem yuav ncaj qha los ntawm peb lub Hoobkas thiab txo lawv cov nqi khoom. Peb yuav hloov kho peb cov ntaub ntawv nthuav tawm ntawm lub vev xaib.
Peb muaj kev ntseeg siab nyob rau hauv kev tsim thiab zoo ntawm peb pib pib dua khawm hom S01 Thermal Protection Hloov. Yog tias koj tsis paub meej tias peb cov khoom puas haum rau koj cov khoom siv, thov koj xav tiv tauj peb lossis nug cov lus nug.
Cim npe nrov: Nws pib pib dua khawm hom S01 thermal tiv thaiv hloov, Tuam Tshoj pib pib dua khawm hom s01 thermal tiv thaiv hloov chaw manufacturers, lwm tus neeg, Hoobkas
