Khoom Desc.

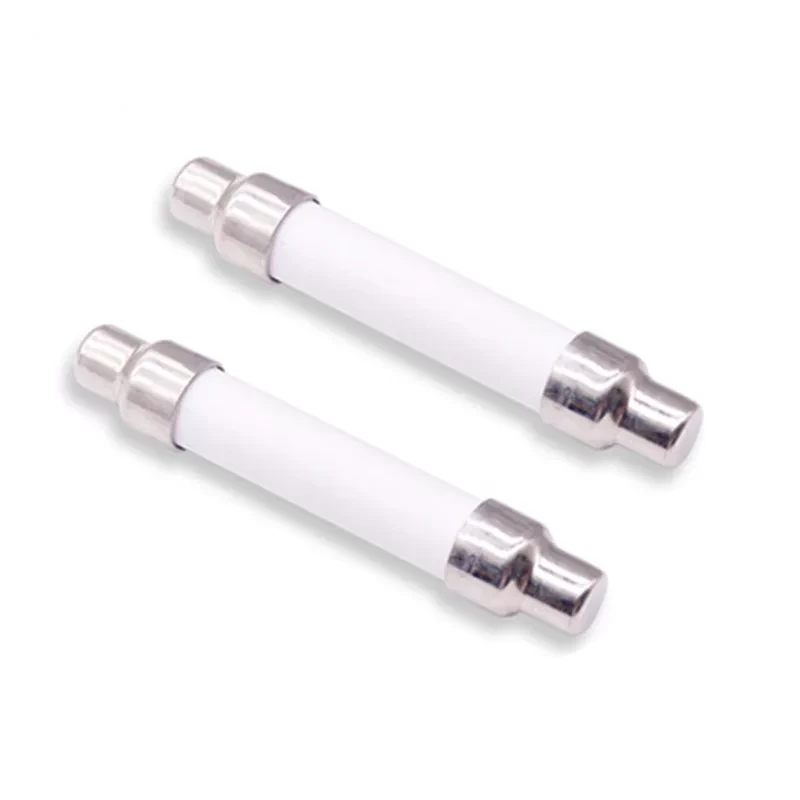

10 x 85mm PV fuse yog ib hom hluav taws xob kev nyab xeeb khoom tsim tshwj xeeb rau kev siv hauv photovoltaic (PV) systems. PV fuses yog siv los tiv thaiv lub kaw lus tiv thaiv overcurrent thiab luv luv Circuit Court, uas tuaj yeem ua rau cov khoom puas tsuaj los yog tsim kom muaj kev nyab xeeb.

Lub 10 x 85 hli PV fuse muaj ib tug cylindrical zoo thiab yog 10 hli inch nrog ib tug ntev ntawm 85 hli. Nws yog feem ntau ntsuas rau qhov siab tshaj plaws ntawm 1000 volts DC thiab qhov siab tshaj plaws tam sim no ntawm 30 amps.

Lub fuse muaj ob lub hau kawg ua los ntawm cov hlau thiab yog tsim nrog lub cev ceramic. Cov kaus mom hlau kawg yog tsim los muab kev ruaj ntseg rau kev sib txuas ntawm cov kab hluav taws xob, thiab lub cev ceramic muab cov rwb thaiv tsev thiab tiv thaiv qhov kub thiab txias.

Lub fuse ua haujlwm los ntawm melting nws cov khoom sab hauv thaum tam sim no tshaj nws cov nqi ntsuas, uas ua rau lub voj voog thiab tiv thaiv lub cev. Thaum muaj teeb meem tshwm sim, lub fuse yuav tsum tau hloov los kho qhov system tiv thaiv.

10x85mmsolarpvfuselongcartridgetype1500vdchrccylindricalfuse

Qhov zoo ntawm 10 x 85mm Photovoltaic Fuse

1. Kev tiv thaiv:Lub luag haujlwm tseem ceeb ntawm PV fuse yog los tiv thaiv PV system tiv thaiv overcurrent thiab luv-circuit faults. 10 X 85mm PV Fuse yog tsim los tswj cov DC voltages siab thiab cov tam sim no uas feem ntau pom nyob rau hauv PV systems.

2 Durability:PV fuses raug rau ib puag ncig hnyav xws li kub thiab av noo. PV Fuse yog tsim los tiv taus cov xwm txheej zoo li no.

10x85mmsolarpvfuse5

3. Nqi-zoo:PV fuses kuj pheej yig, thiab 10 X 85mm PV Fuse tsis muaj qhov zam. Siv lub PV fuse tuaj yeem pab tiv thaiv kev puas tsuaj rau PV system, ua rau nws muaj txiaj ntsig zoo rau lub sijhawm ntev.

4. Muaj peev xwm cuam tshuam ntau:Lub peev xwm cuam tshuam ntawm lub fuse yog qhov siab tshaj plaws tam sim no uas nws tuaj yeem cuam tshuam yam tsis muaj kev puas tsuaj rau lub voj voog. 10 X 85mm PV Fuse muaj lub peev xwm cuam tshuam loj, uas pab tiv thaiv kev puas tsuaj rau lub cev thaum muaj kev ua txhaum.

Khoom Parameter

Khoom npe:	10 x 85 mm PV Fuse	Loj:	10 mm x 85 mm
Rated voltage:	1500V DC fais fab mov	Rated Tam sim no:	1A rau 30A
Caps:	Nickel Plated Copper Cap	Lub cev:	Engineering Ceramic Tube
Hom:	Photovoltaic Fuses	Sijhawm tsis tu ncua:	<1ms
Breaking Peev Xwm:	30 kA	Daim ntawv thov:	Kev siv hluav taws xob photovoltaic

Specifications

Catalog No.	Rated Tam sim no	Rated Voltage	Txhaum Muaj Peev Xwm	Kev Pom Zoo Kev Nyab Xeeb
Catalog No.	Rated Tam sim no	Rated Voltage	Txhaum Muaj Peev Xwm	CQC	UL	TUV
10 LPVU 15.1	1A	1500V (DC)	30kA ,ua Tsis tu ncua<1ms	O	O	O
10 TSI 15.2	2A			O	O	O
10 TSI 15.3	3A			O	O	O
10 LPVU 15.4	4A			O	O	O
10 TSI 15.5	5A			O	O	O
10 LPVU 15.6	6A			O	O	O
10 TSI 15.8	8A			O	O	O
10 PAB 15.10	10A			O	O	O
10 PAB 15.12	12A			O	O	O
10 PAB 15.15	15A			O	O	O
10 PAB 15.16	16A			O	O	O
10 PAB 15.20	20A			O	O	O
10 PAB 10.25	25A			O	O	O
10.30 Nws	30A			O	O	O
U15 DENOTES rau 1500VDC U10 DENOTES rau 1000VDC ●DENOTES rau pom zoo oDENOTED rau PENDING

Khoom Dimension

10x85mmsolarpvfuselongcartridgetype

Kev teeb tsa

Txhawm rau nruab 10 * 85mm PV (Photovoltaic) fuse, ua raws li cov kauj ruam no:

1. Tshem tawm cov khoom siv hluav taws xob rau PV system ua ntej txhim kho lub fuse.

2. Nrhiav lub fuse tuav ntawm PV system. Nws feem ntau yog nyob ze ntawm lub inverter lossis tus tswj hwm.

3. Qhib lub fuse tuav los ntawm kev tshem lub hau los yog unscrewing lub hau.

4. Nqa lub 10 * 85mm PV fuse thiab ntxig rau hauv lub thawv.

5. Xyuas kom tseeb tias lub fuse yog ruaj khov nyob rau hauv lub tuav.

6. Kaw lub fuse tuav los ntawm kev hloov lub hau los yog ntswj lub hau rov qab.

7. Tig lub hwj chim rov qab thiab xyuas kom ntseeg tau tias PV system ua haujlwm zoo.

Cov khoom siv

New-Cover-How-PV-System-Produces-Electricity

PV fuses yog tsim los tiv thaiv cov khoom siv hluav taws xob ntawm PV system, suav nrog cov hnub ci vaj huam sib luag, roj teeb, thiab inverters, los ntawm kev puas tsuaj los ntawm overcurrents lossis luv circuits.

Qee daim ntawv thov ntawm 10 * 85mm PV fuse suav nrog:

Solar vaj huam sib luag tiv thaiv:PV fuses tuaj yeem siv los tiv thaiv lub hnub ci vaj huam sib luag los ntawm overcurrents tshwm sim los ntawm xob laim lossis lwm yam hluav taws xob surges. Qhov loj 10 * 85mm yuav tsim nyog rau me me rau nruab nrab hnub ci vaj huam sib luag.

Roj teeb tiv thaiv:PV fuses tuaj yeem siv los tiv thaiv cov roj teeb ntawm overcharging lossis luv circuits. Qhov loj 10 * 85mm yuav tsim nyog rau cov roj teeb uas siv hauv cov tshuab PV me me rau nruab nrab.

Inverter tiv thaiv:PV fuses tuaj yeem siv los tiv thaiv inverters los ntawm kev puas tsuaj los ntawm overcurrents lossis luv circuits. Qhov loj 10 * 85mm tuaj yeem tsim nyog rau cov inverter me me rau nruab nrab.

Kev soj ntsuam systems:PV systems feem ntau suav nrog cov kev saib xyuas uas ntsuas qhov ua tau zoo ntawm qhov system thiab ceeb toom tus tswv thaum muaj teeb meem. PV fuses tuaj yeem siv rau hauv kev saib xyuas los tiv thaiv cov xaim thiab lwm yam khoom los ntawm overcurrents lossis luv circuits.

Zuag qhia tag nrho, 10 * 85mm PV fuse tuaj yeem yog qhov muaj txiaj ntsig zoo hauv ntau yam kev siv PV system, muab qib tseem ceeb ntawm kev tiv thaiv rau cov khoom tseem ceeb.
