Khoom Desc.

SMD 6125 Brick Fuse yog cov khoom siv hluav taws xob tsim los muab kev tiv thaiv overcurrent nyob rau hauv ntau yam hluav taws xob circuits. 6125 Series fast acting square nto mount fuses yog tsim los ntawm ceramic thiab tooj liab, ROHS raws cai, halogen dawb thiab tsis muaj txhuas, nrog US (UL) kev pom zoo lub koom haum kev nyab xeeb. Muab board theem thawj thiab theem nrab tiv thaiv Circuit Court nyob rau hauv ntau yam kev siv, Caps yuav ua tau nyiaj los yog kub plated

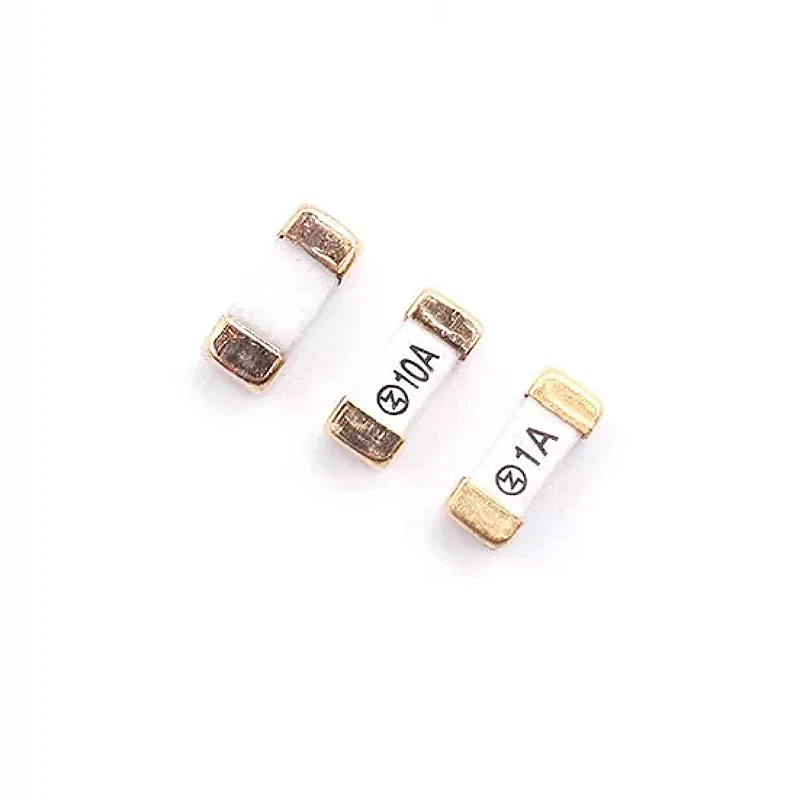

6125bricksurfacemountfuse

Feature ntawm 6125Cib Fuse

1. Loj:"6125" yog hais txog pob qhov ntev ntawm lub fuse. Thawj ob tus lej sawv cev qhov ntev, thiab ob tus lej kawg sawv cev rau qhov dav, ob qho tib si ntsuas hauv pua pua ntawm ib nti. Yog li, "6125" tuaj yeem txhais mus rau lub fuse nrog qhov ntev ntawm 0.61 x 0.25 ntiv tes.

2. Ceev ceev:Hom fuse no feem ntau ua haujlwm nrawm, txhais tau tias nws yuav qhib sai sai los tiv thaiv cov xwm txheej overcurrent.

6125bricksurfacemountfuses

3. Mounting Compatibility:6125 SMD fuses yog tsim los rau saum npoo mount technology (SMT) sib dhos. Lawv muaj solderable terminals rau txhim khu kev qha txuas mus rau lub Circuit Court board.

4. Daim ntawv thov:6125 SMD fuses yog siv nyob rau hauv ntau yam kev siv hluav taws xob, nrog rau cov khoom siv hluav taws xob, cov khoom siv hauv tsev, cov khoom siv sib txuas lus, cov khoom siv hluav taws xob, thiab cov khoom siv hluav taws xob hauv tsheb.

5. Qhov zoo:Qhov loj me me ntawm 6125 SMD fuses tso cai rau lawv yooj yim ua ke rau hauv cov txheej txheem saum npoo mount (SMT) sib dhos, ua rau lawv tsim nyog rau cov khoom ntim siab. Lawv muab kev tiv thaiv overcurrent txhim khu kev qha, pab tiv thaiv cov khoom siv hluav taws xob thiab cov khoom siv.

Khoom Parameter

Khoom npe:	SMD 6125 Cib Fuse	Loj:	6.10 x 2.6 x 2.6 mm
Rated voltage:	125V 250V 300V	Rated Tam sim no:	0.05A-15A
Rated Kub:	-55 degree Rau 125 degree	Hom:	Tshuab nrawm
Feature:	Lead-dawb thiab RoHS raws	Cap:	Copper Silver / Kub Plated
Lub cev:	Ceramic	Hom:	SMD Fuse
Solder peev xwm:	Wave: 260 degree, Tsawg dua lossis sib npaug li 3s; Soldering Hlau: 350 ± 10 degree, Tsawg dua lossis sib npaug li 3s	Soldering Thaum tshav kub kub Resistance:	Wave: 260 degree,<10s; Soldering Iron: 350℃,<3s
Lead Pull Strength:	10N rau 10 ± 1 vib nas this	Lead Thrust Strength:	2N rau 10 ± 1 vib nas this

Khoom Dimension

(hli: mm)

smd chip fuse 2410

Khoom yam ntxwv

6125 brick fuse

Daim ntawv thov

Kev siv dav ntawm 6125 cib fuse

LED tsav tsheb
Notebook/Laptops
PC lub computer
Lub koob yees duab digital
Cov khoom siv hluav taws xob hauv chaw ua haujlwm
Networking ntaus ntawv
Telecom ntaus ntawv
Cov cuab yeej siv tshuab
Fais fab mov
LCD / LED saib

Lub Hoobkas ncig saib

Dongguan Senreach Electronic Co., Ltd. tau tsim nyob rau hauv 2000. Peb lub Hoobkas npog thaj tsam ntawm 4000 square metres nrog lub peev xwm ntau lawm txhua hli ntawm 50 lab daim. Peb tau cog lus tias yuav dhau los ua ib qho kev tiv thaiv hluav taws xob tiv thaiv hluav taws xob thiab cov chaw muag khoom.

Peb tau tshwj xeeb hauv kev tiv thaiv tam sim no, kev tiv thaiv kub, dhau voltage tiv thaiv tsim, kev tsim kho, ntau lawm thiab muag khoom. Cov khoom siv dav siv hauv cov khoom siv hluav taws xob, tsheb, nkoj, kev sib txuas lus, khoom siv hluav taws xob, cov cuab yeej hluav taws xob, lub zog tshiab thiab lwm yam.

Nrog rau ntau yam kev tsim khoom thiab kev sim cov cuab yeej, peb tau txais kev tswj xyuas zoo tshaj plaws los xyuas kom meej tias txhua qhov ntawm peb cov khoom muaj kev nyab xeeb thiab ruaj khov. Peb cov haujlwm yog ISO9001:2000- ntawv pov thawj thiab cov khoom ua tau raws li cov qauv thoob ntiaj teb.

khoom siv

khoom siv

Kev cob qhia ntau lawm

khoom siv

fuse factory 4

Kev tsim fuse

Kev cob qhia ntau lawm

fuse warehouse2

Cov ntaub ntawv khaws cia

khoom siv
